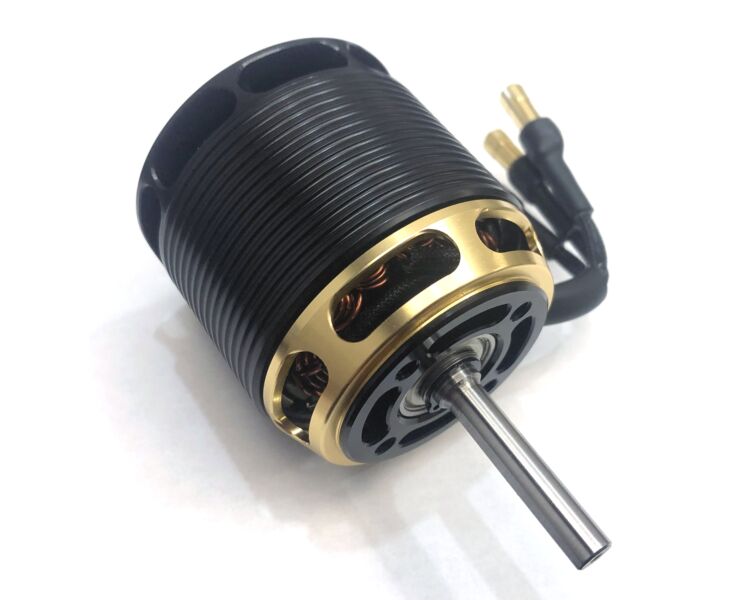

Combove Type Ⅲ 4225-890kv

As low as $210.00
In stock
Only %1 left
SKU
Combove Type Ⅲ 4225-890kv
Apply Payment Method
Apply Payment Method
  • NSK 698ZZ Bearing (8x19x6mm)
  • 1.4 mm ultra-wide copper wire (C+ Class)
  • 180 centigrade NdFeB Magnet
  • efficient & large torque
  • Optimized ventilation

4225-890kv



Specifications

Stator Diameter 42 mm
Stator Thickness 25 mm
No. of Stator Arms 12
No. of Stator Poles 10
Motor Wind 4T+3T Turn Delta
Motor Wire 1-Strand 1.4 mm
Motor Kv 890KV RPM/Volt
No-Load Current (Io/10V) 3.2 Amps
Motor Resistance (RM) 0.018 Ohms
Max Continuous Current 95 Amps
Max Continuous Power 2850 Watts
Weight 360 Grams
Outside Diameter 52.5 mm
Shaft Diameter 6 mm
Body Length 54.5 mm
Overall Shaft Length 94.5 mm
Max Lipo Cell 6s~8s
Max Peak Current 125 Amps (5 seconds)
Max Peak Power 4210 Watts (5 seconds)
Motor Timing 5deg~12deg
Drive Frequency 8kHz~32khz
