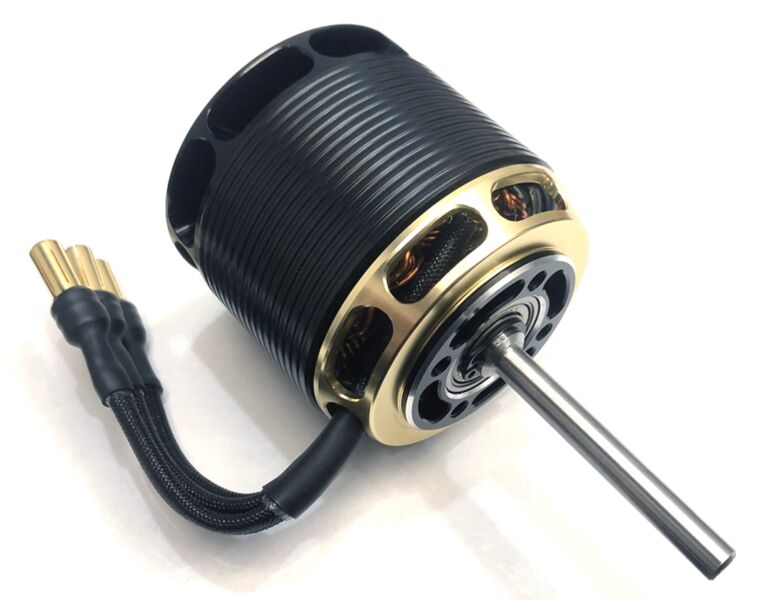

Combove Type Ⅲ 4725-520kv-1.45mm

As low as $280.00
In stock
Only %1 left
SKU
Type Ⅲ 4725-520kv-1.45mm
Apply Payment Method
Apply Payment Method
  • 1.45mm ultra-wide copper wire
  • Pure manual winding
  • 180 centigrade NdFeB Magnet
  • efficient & large torque
  • Optimized ventilation

4725

Specifications

Stator Diameter 47 mm
Stator Thickness 25 mm
No. of Stator Arms 12
No. of Stator Poles 10
Motor Wind 6+6T+6T+5T delta
Motor Wire 1-Strand 1.45 mm
Motor Kv 520KV RPM/Volt
No-Load Current (Io/10V) 2.1 Amps
Motor Resistance (RM) 0.0132 Ohms
Max Continuous Current 120 Amps
Max Continuous Power 4800 Watts
Weight 500 Grams
Outside Diameter 58.5 mm
Shaft Diameter 5.98 mm
Body Length 57 mm
Overall Shaft Length 117 mm
Max Lipo Cell 12s
Max Peak Current 238A (2 seconds)
Max Peak Power 10800 Watts (2 seconds)
Motor Timing 5deg ~ 15 deg
Drive Frequency 5kHz or 8kHz
