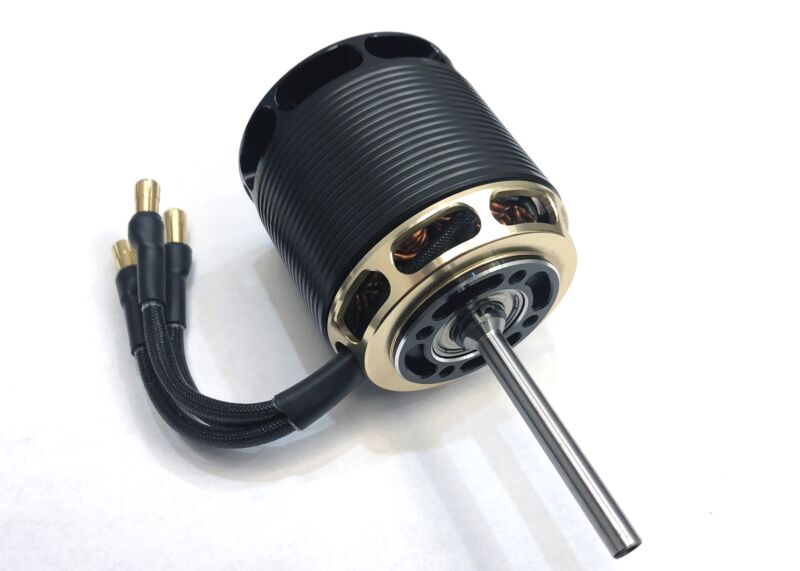

Combove Type Ⅲ 4730-520kv-1.5mm

As low as $250.00
In stock
SKU
Type Ⅲ 4730-520kv
Apply Payment Method
Apply Payment Method
  • 1.5mm ultra-wide copper wire
  • Pure manual winding
  • 180 centigrade NdFeB Magnet
  • efficient & large torque
  • Optimized ventilation

4730

Specifications
Stator Diameter 47 mm (1.85 in)
Stator Thickness 30 mm (1.18 in)
No. of Stator Arms 12
Magnet Poles 10
Motor Wind 5+5Turn Delta
Motor Wire 1-Strand 1.5 mm
Motor Kv 520 KV RPM / Volt
No-Load Current (Io/10V) 2.25 Amps
Motor Resistance (Rm) 0.0115 Ohms
Max Continuous Current 120 Amps
Max Continuous Power 5200 Watts
Weight 550 Grams
Outside Diameter 58.5 mm
Shaft Diameter 6 mm
Body Length 62.5 mm
Overall Shaft Length 112.5 mm
Max Lipo Cell 12s
Max Peak Current 250 A (2 seconds)
Max Peak Power 12500 Watts (2 seconds)
Motor Timing 5deg-8deg
Drive Frequency 8kHz-32khz
