TYPE 3120-950KV
Apply Payment Method
Apply Payment Method
  • Extreme lightweight design
  • High torque and low temperature rise
  • 180 degree NdFeB magnet

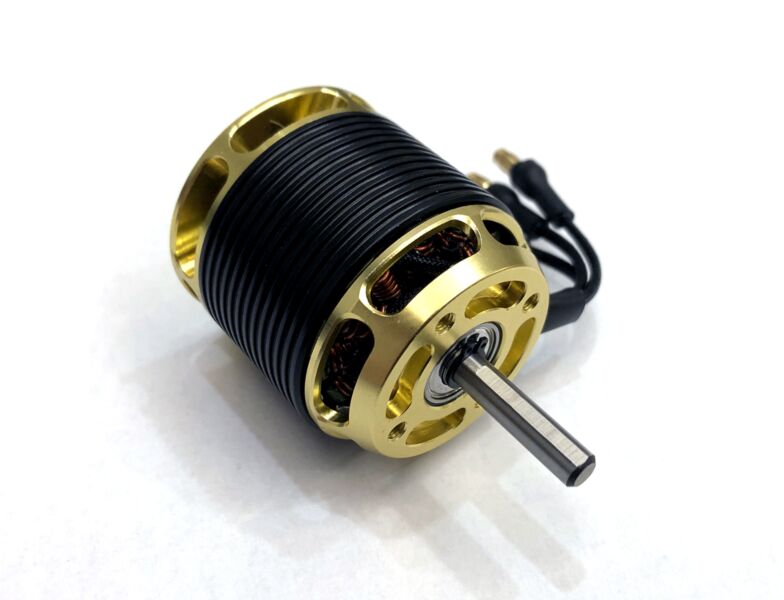

3120 motor



Stator Diameter 31 mm
Stator Thickness 20 mm
No. of Stator Arms 12
Magnet Poles 10
Motor Wind 7T+7T Turn Delta
Motor Wire 1-Strand 0.86 mm
Motor Kv 950KV RPM/Volt
No-Load Current (IO/10v) 1.10 Amps
Motor Resistance (RM) 0.036 Ohms
Max Continuous Current 60 Amp
Max Continuous Power 1350 Watt
Weight 155 Grams
Outside Diameter 40 mm
Shaft Diameter 5 mm
Body Length 41.5 mm
Overall Shaft Length 63 mm
Max Lipo Cell 6s
Peak Continuous Current 80 Amps (4 seconds)
Peak Continuous Power 1820 Watts (4 seconds)
Motor Timing 5deg~12deg
Drive Frequency 8kHz~32khz
