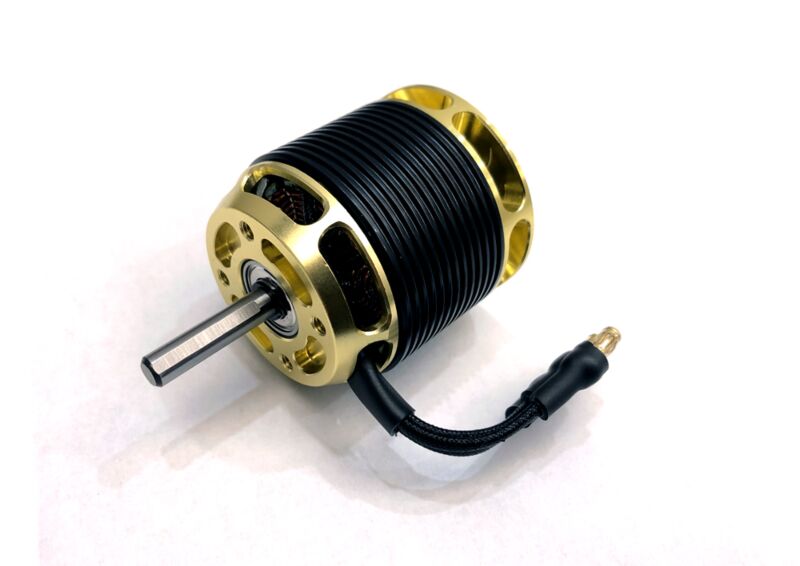

COMBOVE TYPE 3120-1000KV 12N14P
$135.00
In stock
SKU
COMBOVE TYPE 3120-1000KV 12N14P
Apply Payment Method
- Extreme lightweight design
- High torque and low temperature rise
- 180 degree NdFeB magnet
- 12N14P
Specifications
| Stator Diameter | 31 mm |
| Stator Thickness | 20 mm |
| No. of Stator Arms | 12 |
| Magnet Poles | 14 |
| Motor Wind | 5T+5T Turn Delta |
| Motor Wire | 1-Strand 1.0 mm |
| Motor Kv | 1000KV RPM/Volt |
| No-Load Current (IO/10v) | 1.6 Amps |
| Motor Resistance (RM) | 0.017 Ohms |
| Max Continuous Current | 75 Amp |
| Max Continuous Power | 1600 Watt |
| Weight | 158Grams |
| Outside Diameter | 40 mm |
| Shaft Diameter | 5 mm |
| Body Length | 41.5 mm |
| Overall Shaft Length | 63 mm |
| Max Lipo Cell | 6s |
| Peak Continuous Current | 90 Amps (4 seconds) |
| Peak Continuous Power | 2000 Watts (4 seconds) |
| Motor Timing | 5deg~12deg |
| Drive Frequency | 8kHz~32khz |
