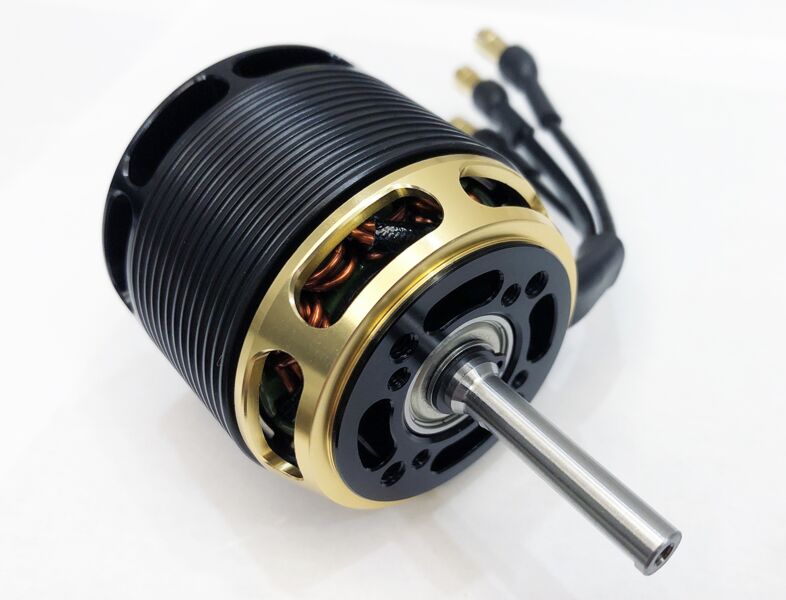

COMBOVE TYPE II 4220-520KV

As low as $195.00
In stock
Only %1 left
SKU
COMBOVE TYPE II 4220-520KV
Apply Payment Method
Apply Payment Method
  • NSK 698ZZ Bearing (8x19x6mm)
  • 1.0mm ultra-wide copper wire
  • 180 centigrade NdFeB Magnet
  • efficient & large torque
  • Optimized ventilation(Third Generation)

4220-505

Specifications

Stator Diameter 42 mm
Stator Thickness 20 mm
No. of Stator Arms 12
No. of Stator Poles 10
Motor Wind 8T+7T Delta
Motor Wire 1-Strand 1.0 mm
Motor Kv 520KV RPM/Volt
No-Load Current (Io/10V) 0.82 Amps
Motor Resistance (RM) 0.027 Ohms
Max Continuous Current  65Amps
Max Continuous Power 2920 Watts
Weight 320 Grams
Outside Diameter 52.5 mm
Shaft Diameter 6 mm
Body Length 49.5 mm
Overall Shaft Length 81.5 mm
Max Lipo Cell 12s
Max Peak Current 92A (3 seconds)
Max Peak Power 3720 Watts (3 seconds)
Motor Timing 5deg
Drive Frequency 8kHz to 32kHz
