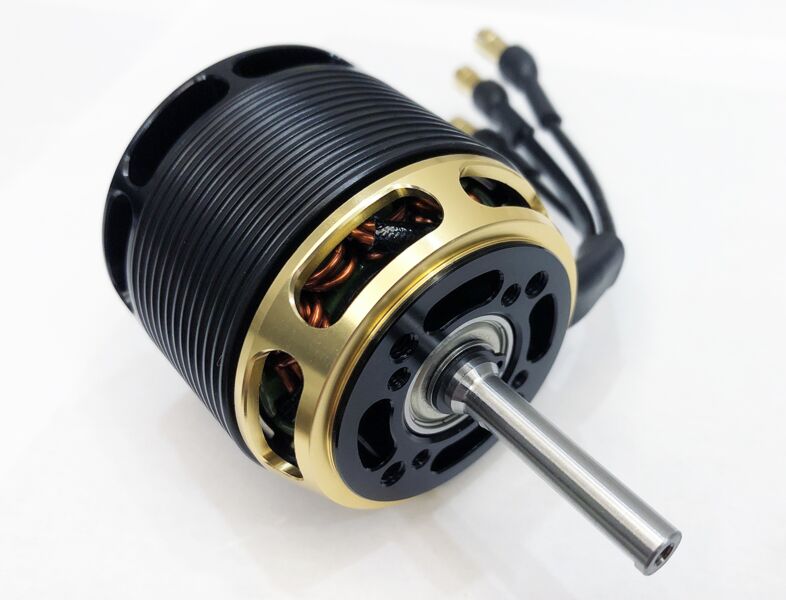

COMBOVE TYPE II 4220-850KV
As low as
$195.00
In stock
Only %1 left
SKU
COMBOVE TYPE II 4220-850KV
- NSK 698ZZ Bearing (8x19x6mm)
- 1.3mm ultra-wide copper wire
- 180 centigrade NdFeB Magnet
- efficient & large torque
- Optimized ventilation(Third Generation)
Details
Specifications
| Stator Diameter |
42 mm |
| Stator Thickness |
20 mm |
| No. of Stator Arms |
12 |
| No. of Stator Poles |
10 |
| Motor Wind |
5T+5T Delta |
| Motor Wire |
1-Strand 1.3 mm |
| Motor Kv |
850KV RPM/Volt |
| No-Load Current (Io/10V) |
1.79 Amps |
| Motor Resistance (RM) |
0.011 Ohms |
| Max Continuous Current |
85Amps |
| Max Continuous Power |
3250 Watts |
| Weight |
320 Grams |
| Outside Diameter |
52.5 mm |
| Shaft Diameter |
6 mm |
| Body Length |
49.5 mm |
| Overall Shaft Length |
81.5 mm |
| Max Lipo Cell |
6s-8S |
| Max Peak Current |
115A (3 seconds) |
| Max Peak Power |
3850 Watts (3 seconds) |
| Motor Timing |
5deg |
| Drive Frequency |
8kHz to 32kHz |
