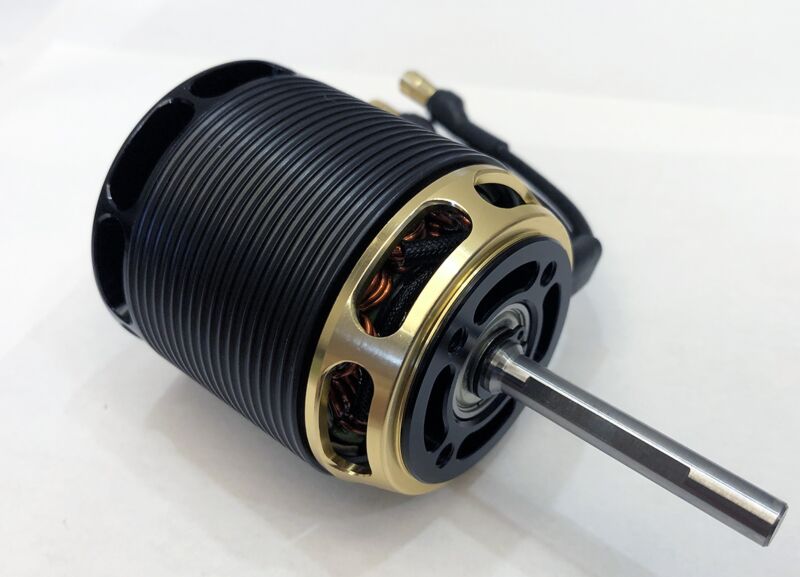

COMBOVE TYPE II 4230-400KV
As low as
$240.00
In stock
Only %1 left
SKU
COMBOVE TYPE II 4230-400KV
Apply Payment Method
- NSK 698ZZ Bearing (8x19x6mm)
- 1.0mm ultra-wide copper wire(C+)
- 180 centigrade NdFeB Magnet
- efficient & large torque
- Optimized ventilation(Third Generation)
Specifications
| Stator Diameter | 42 mm |
| Stator Thickness | 30 mm |
| No. of Stator Arms | 12 |
| No. of Stator Poles | 10 |
| Motor Wind | 7T+6T Delta |
| Motor Wire | 1-Strand 1.0 mm |
| Motor Kv | 400KV RPM/Volt |
| No-Load Current (Io/10V) | 0.56 Amps |
| Motor Resistance (RM) | 0.033 Ohms |
| Max Continuous Current | 75 Amps |
| Max Continuous Power | 3860 Watts |
| Weight | 430 Grams |
| Outside Diameter | 52.5 mm |
| Shaft Diameter | 6 mm |
| Body Length | 59.5 mm |
| Overall Shaft Length | 95 mm |
| Max Lipo Cell | 12s |
| Max Peak Current | 110A (3 seconds) |
| Max Peak Power | 4650 Watts (3 seconds) |
| Motor Timing | 5deg |
| Drive Frequency | 8kHz to 32kHz |
