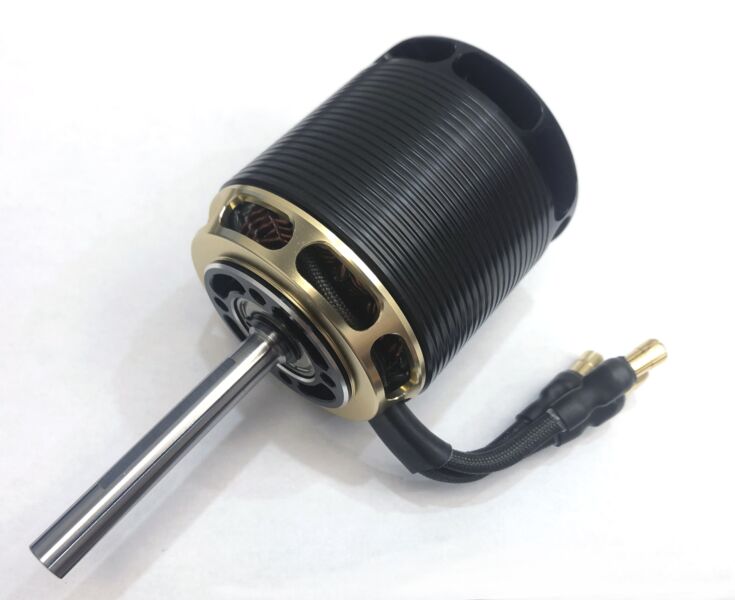

Combove Type II 4735-300kv-1.3mm
$280.00
In stock
Only %1 left
SKU
Combove Type II 4735-300kv-1.3mm
- 1.3 mm ultra-wide copper wire
- Pure manual winding
- 180 centigrade NdFeB Magnet
- efficient & large torque
- Optimized ventilation
Details
Specifications
|
|
| Stator Diameter |
47 mm |
| Stator Thickness |
35 mm |
| No. of Stator Arms |
12 |
| Magnet Poles |
10 |
| Motor Wind |
7T+7Turn Delta |
| Motor Wire |
1-Strand 1.3mm |
| Motor Kv |
300 KV RPM / Volt |
| No-Load Current (Io/10V) |
1.2 Amps |
| Motor Resistance (Rm) |
0.024 Ohms |
| Max Continuous Current |
95 Amps |
| Max Continuous Power |
5600 Watts |
| Weight |
630 Grams |
| Outside Diameter |
58.8 mm |
| Shaft Diameter |
6 mm |
| Body Length |
67.5 mm |
| Overall Shaft Length |
117.5 mm |
| Max Lipo Cell |
12s |
| Max Peak Current |
150 A (2 seconds) |
| Max Peak Power |
8560 Watts (2 seconds) |
| Motor Timing |
5deg-8deg |
| Drive Frequency |
8kHz-32khz |
