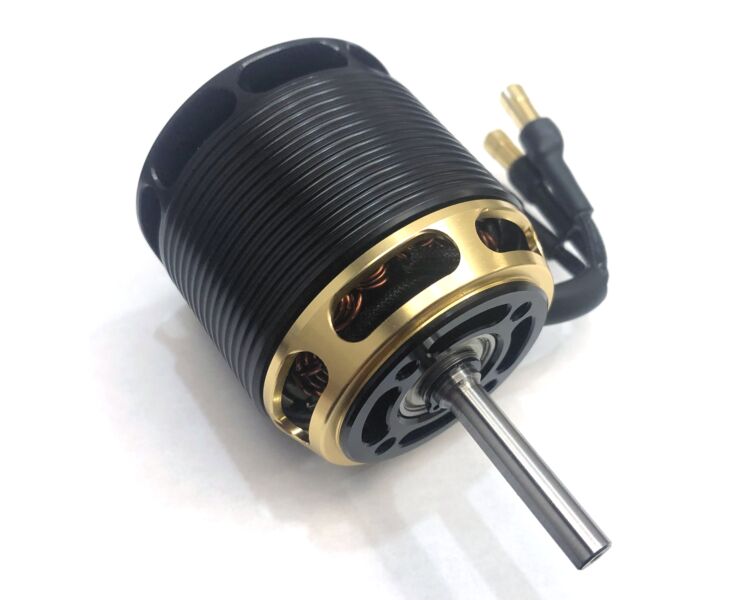

Combove Type Ⅲ 4225-550kv

As low as $220.00
In stock
Only %1 left
Combove Type Ⅲ 4225-550kv
Apply Payment Method
Apply Payment Method
  • NSK 698ZZ Bearing (8x19x6mm)
  • 1.2mm ultra-wide copper wire
  • 180 centigrade NdFeB Magnet
  • efficient & large torque
  • Optimized ventilation

4225 III



Stator Diameter 42 mm
Stator Thickness 25 mm
No. of Stator Arms 12
No. of Stator Poles 10
Motor Wind 6T+5T Delta
Motor Wire 1-Strand 1.2 mm
Motor Kv 550KV RPM/Volt
No-Load Current (Io/10V) 0.89 Amps
Motor Resistance (RM) 0.018 Ohms
Max Continuous Current 90 Amps
Max Continuous Power 3750 Watts
Weight 370 Grams
Outside Diameter 52.5 mm
Shaft Diameter 6 mm
Body Length 54.5 mm
Overall Shaft Length 95 mm
Max Lipo Cell 12s
Max Peak Current 130A (3 seconds)
Max Peak Power 5700 Watts (3 seconds)
Motor Timing 5deg to 15 deg
Drive Frequency 8kHz to 32kHz
