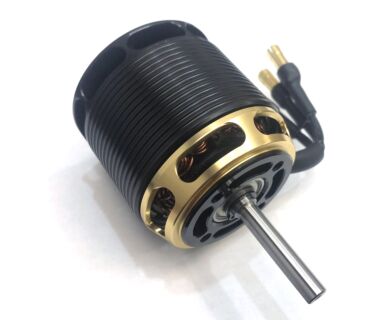

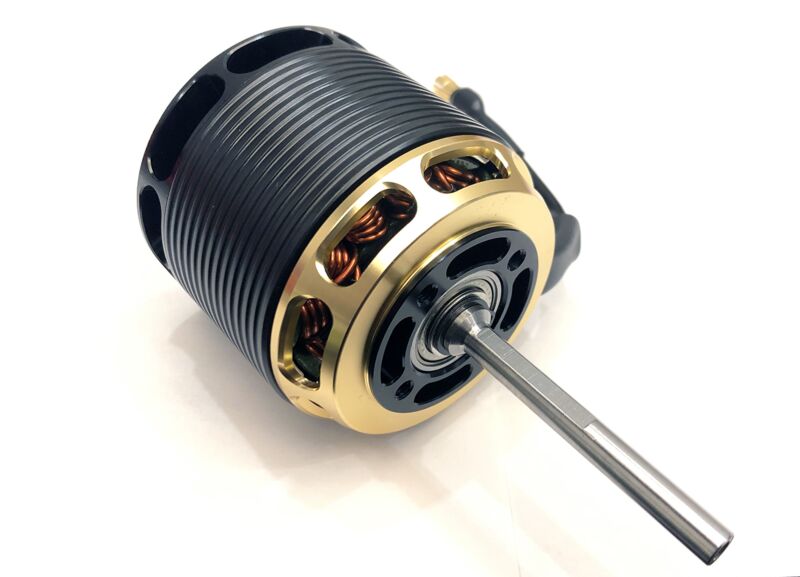

Combove Type III 5025-530kv (12N10P)
- 3 Bearings NSK 6900ZZ(10X22X6mm) Cr(kN)2.7 & Cor (kN)1.27
- 1.5mm C+ Class High-quality copper wire
- 180 Degrees Celsius NdFeB Magnet
Features:
With the great success of our 2nd Generation 50 Series motors in the field of drones, we decided to launch the 12N10P structure 50 Series motors to meet the needs of the market.
We have carried out a lot of lightweight designs for 12N10P structure 50 series motors, almost the lightest 50 series motor in the world. The standard version of 5025-530KV motor weighs only 565 grams (including 5.5mm gold plug).
The 50 series motor with 12N10P structure also has huge advantages in temperature rise, not only strong power, but also excellent in rotational inertia.
Dimensional drawing：
Specifications：
|
Stator Diameter |
50 mm |
|
Stator Thickness |
25 mm |
|
Motor Kv |
530KV RPM/Volt |
|
Weight |
565 Grams(including 5.5mm gold plug) |
|
Motor Body Dimensions |
61.8 mmx60.5mm |
|
External Shaft Dimensions |
6mm/8mm |
|
Continuous Current |
130 Amps |
|
Continuous Power |
6020 Watts |
|
Peak Current |
275A (2 seconds) |
|
Peak Power |
12500 Watts (2 seconds) |
|
Max Lipo Cell |
12s-14s |
