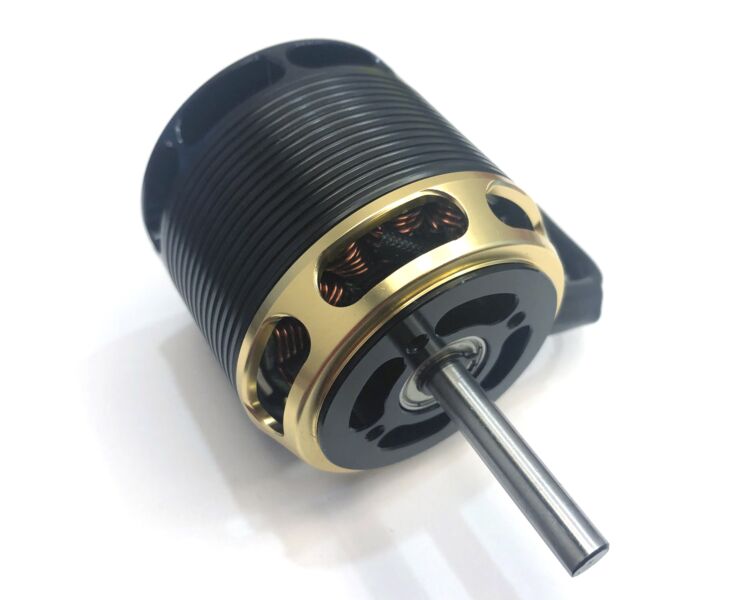

COMBOVE TYPE IV 4020-500KV
As low as
$120.00
In stock
Only %1 left
SKU
COMBOVE TYPE IV 4020-500KV
Apply Payment Method
Specifications
Stator Diameter | 40 mm |
Stator Thickness | 20 mm |
No. of Stator Arms | 12 |
Magnet Poles | 10 |
Motor Wind | 10+9 Turn Delta |
Motor Wire | 1-Strand 1.0mm |
Motor Kv | 530KV RPM/Volt |
No-Load Current (IO/10v) | 0.95 Amps |
Motor Resistance (RM) | 0.035 Ohms |
Max Continuous Current | 55 Amps |
Max Continuous Power | 2220 Watts |
Weight | 300 Grams |
Outside Diameter | 50.8 mm |
Shaft Diameter | 6 mm |
Body Length | 49.5 mm |
Overall Shaft Length | 81 mm |
Max Lipo Cell | 12s |
Peak Continuous Current | 75 Amps (5 seconds) |
Peak Continuous Power | 2960 Watts (5 seconds) |
Motor Timing | 5deg~12deg |
Drive Frequency | 8kHz~32khz |
