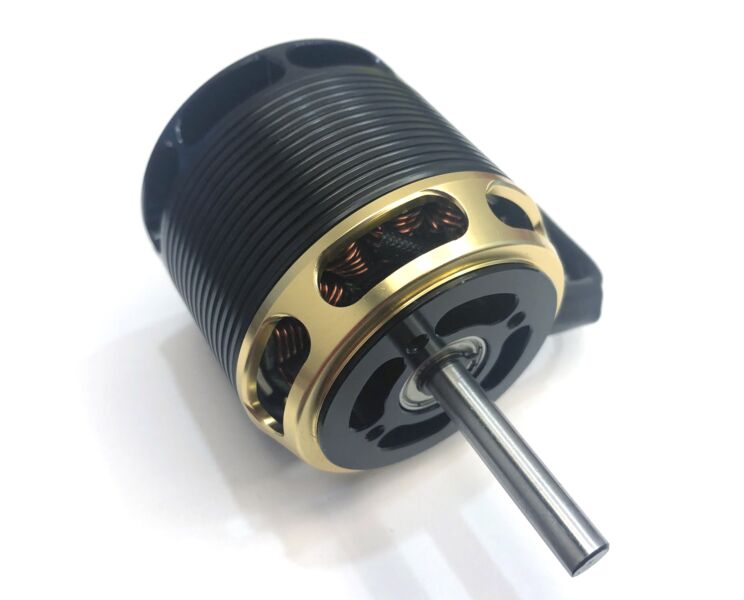

COMBOVE TYPE IV 4020-650KV

As low as $120.00
In stock
Only %1 left
SKU
COMBOVE TYPE IV 4020-650KV
Apply Payment Method
Apply Payment Method



Specifications

Stator Diameter 40 mm
Stator Thickness 20 mm
No. of Stator Arms 12
Magnet Poles 10
Motor Wind 7T+7T Turn Delta
Motor Wire 1-Strand 1.1 mm
Motor Kv 650KV RPM/Volt
No-Load Current (IO/10v) 1.8 Amps
Motor Resistance (RM) 0.029 Ohms
Max Continuous Current 85 Amps
Max Continuous Power 3280 Watts
Weight 300 Grams
Outside Diameter  50.8 mm
Shaft Diameter 6 mm
Body Length 49.5 mm
Overall Shaft Length 81 mm
Max Lipo Cell 12s
Peak Continuous Current 95 Amps (5 seconds)
Peak Continuous Power 3660 Watts (5 seconds)
Motor Timing 5deg~12deg
Drive Frequency 8kHz~32khz
