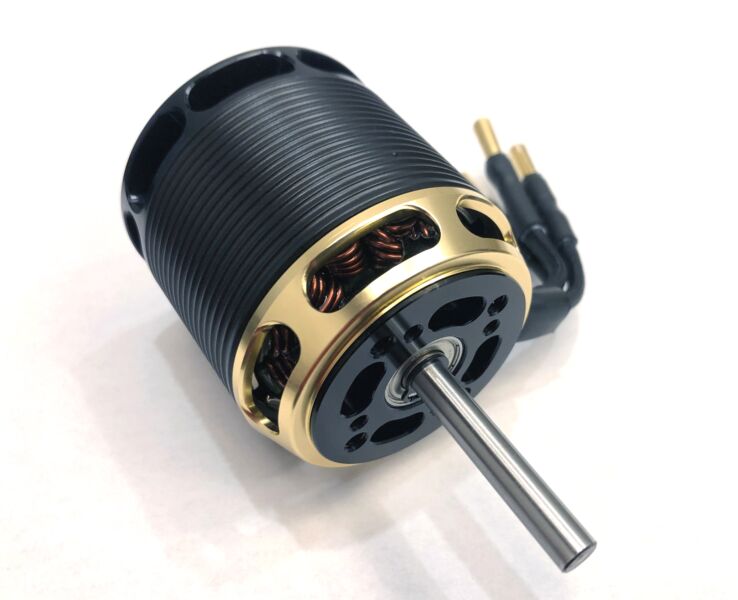

Combove Type IV 4025-1100kv

As low as $140.00
In stock
Only %1 left
Combove Type IV 4025-1100kv
Apply Payment Method
Apply Payment Method




Stator Diameter 40 mm
Stator Thickness 25 mm
No. of Stator Arms 12
Magnet Poles 10
Motor Wind 4+3 Turn Delta
Motor Wire 2-Strand 1.0 mm
Motor Kv 1100KV RPM/Volt
No-Load Current (IO/10v) 4.19 Amps
Motor Resistance (RM) 0.006 Ohms
Max Continuous Current 100 Amp
Max Continuous Power 2400 Watt
Weight 350 Grams
Outside Diameter 50.8 mm
Shaft Diameter 6 mm
Body Length 54.5 mm
Overall Shaft Length 90 mm
Max Lipo Cell 6s
Peak Continuous Current 130 Amps (5 seconds)
Peak Continuous Power 2920 Watts (5 seconds)
Motor Timing 5deg
Drive Frequency 8kHz~32khz
