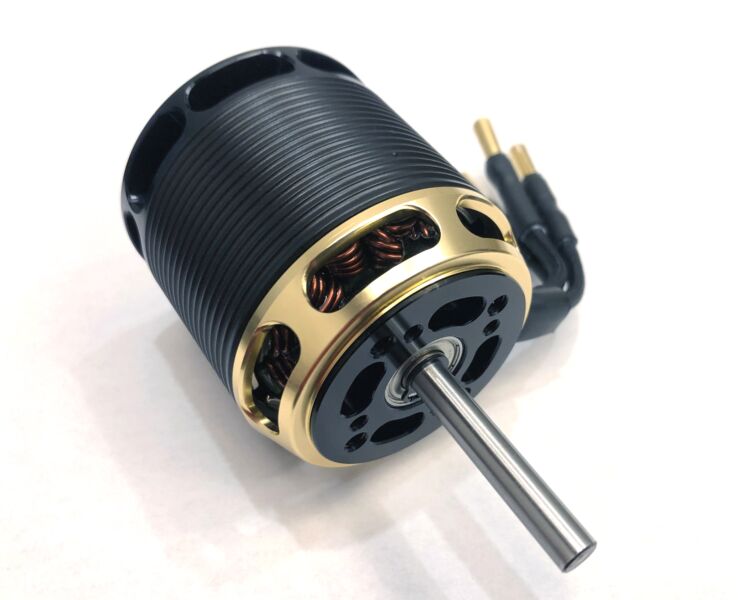

COMBOVE TYPE IV 4025-850KV

As low as $140.00
In stock
SKU
COMBOVE TYPE IV 4025-850KV
Apply Payment Method
Apply Payment Method

4025



Specifications

Stator Diameter 40
Stator Thickness 25 mm
No. of Stator Arms 12
Magnet Poles 10
Motor Wind 5+4 Turn Delta
Motor Wire 1-Strand 1.3 mm
Motor Kv 850KV RPM/Volt
No-Load Current (IO/10v) 2.58 Amps
Motor Resistance (RM) 0.015 Ohms
Max Continuous Current 90 Amp
Max Continuous Power 2800 Watt
Weight 350 Grams
Outside Diameter 50.8 mm
Shaft Diameter 6 mm
Body Length 54.5 mm
Overall Shaft Length 91 mm
Max Lipo Cell 8s
Peak Continuous Current 110 Amps (5 seconds)
Peak Continuous Power 3300 Watts (5 seconds)
Motor Timing 5deg~12deg
Drive Frequency 8kHz~32khz
